ZW系列振動電機

ZW系列振動電機技術參數型號大激振力（KN）轉速(Rpm)額定功率（Kw）額定電流（A）安裝尺寸外形尺寸CkφdLABEHH1H2圖號0.7-20.728600.0750.241001409282150170601527020AD1.5-21.528600.150.410015013302150180701768520AD2.5-22.528600.250.5810015013312150180701768520AD5-2528600.401.021002001635018025015023012025AD8-2828600.751.761352301840724528013027614025AD10-21028601.12.561352301842524528013027614025AD16-21628601.53.71902602251430031014032717025AD20-22028601.84.261902602254430031014032717025AD30-230286037.61902602655030031014032717025AD1.2-41.214600.100.3410015013302150180701768520AD2.5-42.514600.100.3410015013320150180701768520AD5-4514600.250.651002001637418025015023012025AD8-4814600.401.161352301841724528013027614025AD10-41014600.551.591352301843724528013027614025AD16-41614600.751.911402602245425031014032717025AD20-42014601.12.811402602245425031014032717025AD25-42514601.53.841902602650030031014032717025AD32-432146024.691902602652030031014032717025AD40-44014602.25.12203203255034040017042017025AD50-45014602.56.32203203259034040017042022530AD75-4751460410.181353803280647048027045623035BD100-41001460615.81353803287047048027045623035BD120-41201460819.61184603890452055034050826038CD140-414014601024.161184603898052055034050826038CD160-416014601228.512051045100052061036053327040CD2.5-62.59800.20.711002001636518025015023012025AD5-659800.41.231002001640018025015023012025AD8-6109800.551.681352301845724528013027614025AD10-6109800.752.31352301845724528013027614025AD15-6159801.13.351402602243825031014032717025AD18-6189801.13.651402602243025031014032717025AD20-6209801.53.81402602245425031014032717025AD26-6269801.94.81402602249025031014032717025AD30-6309802.25.521603203250229039019038020028AD40-64098037.71603203253629039019038020028AD50-6509803.79.82203203259034040017042022530AD75-6759805.513.31353803280647048027045623035BD100-61009807.5181353803290047048027045623035BD120-61209809231184603890452055034050826038CD130-613098010251184603895052055034050826038CD140-61409801228.51184603898052055034050826038CD150-6150980133111846038100052055034050826038CD160-6160980143212051045100052061036053327040CD180-6180980163612051045130052061036053327040CD

相關產品：

TZDC系列振動電機

XVM系列通用型振動電機

YZS系列振動電機

立即咨詢

產品中心

Product Center Product

聯系我們

聯系人：劉經理

手機：13837390643　0373-3675615

聯系人：0373-3675615

郵箱：dzshaiji18@163.com

網址：http://www.makuan.cn/

地址：新鄉經濟技術開發區經八路

產品介紹
核心優勢
發貨現場
相關產品

ZW系列振動電機技術參數
ZW系列振動電機技術參數
型號	大激振力（KN）	轉速 (Rpm)	額定功率（Kw）	額定電流（A）	安裝尺寸 (mm)			外形尺寸

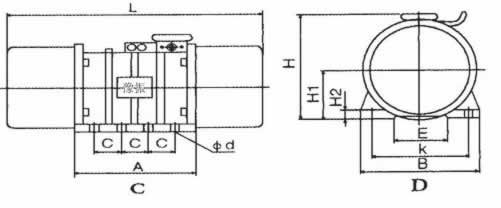

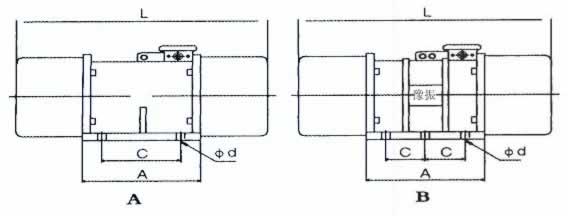

					C	k	φd	L	A	B	E	H	H1	H2	圖號
					C	k	φd	L	A	B	E	H	H1	H2	圖號
0.7-2	0.7	2860	0.075	0.24	100	140	9	282	150	170	60	152	70	20	AD
1.5-2	1.5	2860	0.15	0.4	100	150	13	302	150	180	70	176	85	20	AD
2.5-2	2.5	2860	0.25	0.58	100	150	13	312	150	180	70	176	85	20	AD
5-2	5	2860	0.40	1.02	100	200	16	350	180	250	150	230	120	25	AD
8-2	8	2860	0.75	1.76	135	230	18	407	245	280	130	276	140	25	AD
10-2	10	2860	1.1	2.56	135	230	18	425	245	280	130	276	140	25	AD
16-2	16	2860	1.5	3.7	190	260	22	514	300	310	140	327	170	25	AD
20-2	20	2860	1.8	4.26	190	260	22	544	300	310	140	327	170	25	AD
30-2	30	2860	3	7.6	190	260	26	550	300	310	140	327	170	25	AD
1.2-4	1.2	1460	0.10	0.34	100	150	13	302	150	180	70	176	85	20	AD
2.5-4	2.5	1460	0.10	0.34	100	150	13	320	150	180	70	176	85	20	AD
5-4	5	1460	0.25	0.65	100	200	16	374	180	250	150	230	120	25	AD
8-4	8	1460	0.40	1.16	135	230	18	417	245	280	130	276	140	25	AD
10-4	10	1460	0.55	1.59	135	230	18	437	245	280	130	276	140	25	AD
16-4	16	1460	0.75	1.91	140	260	22	454	250	310	140	327	170	25	AD
20-4	20	1460	1.1	2.81	140	260	22	454	250	310	140	327	170	25	AD
25-4	25	1460	1.5	3.84	190	260	26	500	300	310	140	327	170	25	AD
32-4	32	1460	2	4.69	190	260	26	520	300	310	140	327	170	25	AD
40-4	40	1460	2.2	5.1	220	320	32	550	340	400	170	420	170	25	AD
50-4	50	1460	2.5	6.3	220	320	32	590	340	400	170	420	225	30	AD
75-4	75	1460	4	10.18	135	380	32	806	470	480	270	456	230	35	BD
100-4	100	1460	6	15.8	135	380	32	870	470	480	270	456	230	35	BD
120-4	120	1460	8	19.6	118	460	38	904	520	550	340	508	260	38	CD
140-4	140	1460	10	24.16	118	460	38	980	520	550	340	508	260	38	CD
160-4	160	1460	12	28.5	120	510	45	1000	520	610	360	533	270	40	CD
2.5-6	2.5	980	0.2	0.71	100	200	16	365	180	250	150	230	120	25	AD
5-6	5	980	0.4	1.23	100	200	16	400	180	250	150	230	120	25	AD
8-6	10	980	0.55	1.68	135	230	18	457	245	280	130	276	140	25	AD
10-6	10	980	0.75	2.3	135	230	18	457	245	280	130	276	140	25	AD
15-6	15	980	1.1	3.35	140	260	22	438	250	310	140	327	170	25	AD
18-6	18	980	1.1	3.65	140	260	22	430	250	310	140	327	170	25	AD
20-6	20	980	1.5	3.8	140	260	22	454	250	310	140	327	170	25	AD
26-6	26	980	1.9	4.8	140	260	22	490	250	310	140	327	170	25	AD
30-6	30	980	2.2	5.52	160	320	32	502	290	390	190	380	200	28	AD
40-6	40	980	3	7.7	160	320	32	536	290	390	190	380	200	28	AD
50-6	50	980	3.7	9.8	220	320	32	590	340	400	170	420	225	30	AD
75-6	75	980	5.5	13.3	135	380	32	806	470	480	270	456	230	35	BD
100-6	100	980	7.5	18	135	380	32	900	470	480	270	456	230	35	BD
120-6	120	980	9	23	118	460	38	904	520	550	340	508	260	38	CD
130-6	130	980	10	25	118	460	38	950	520	550	340	508	260	38	CD
140-6	140	980	12	28.5	118	460	38	980	520	550	340	508	260	38	CD
150-6	150	980	13	31	118	460	38	1000	520	550	340	508	260	38	CD
160-6	160	980	14	32	120	510	45	1000	520	610	360	533	270	40	CD
180-6	180	980	16	36	120	510	45	1300	520	610	360	533	270	40	CD
